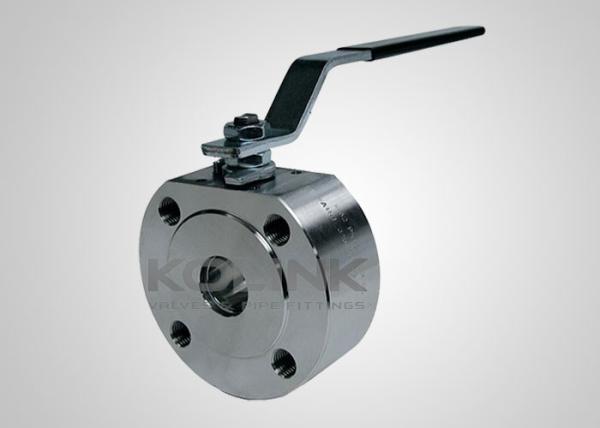

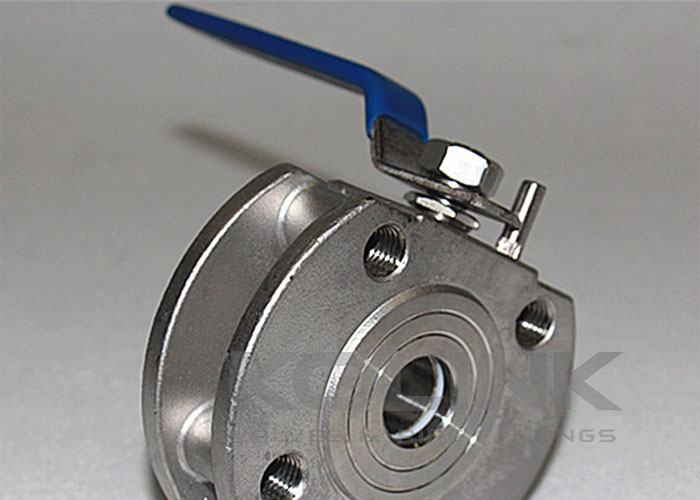

Wafer Type Ball Valve, Stainless Steel Thin Ball Valve CF8 CF8M F304 F316

Wafer type ball valve is a type of “thin” ball valve with 1-piece body design, short distance between the valve seat and the end flange, and short face-to-face dimension. Normally the valve is monobloc one piece type, but for larger sizes, wafer ball valves could also be designed in 2 pieces split body. Due to its lightweight design, wafer ball valves are used in low pressure service. Other Options include O-port, V-port, Curved Port, and Rectangular port for different flow regulation requirements

Wafer ball valves are widely used in chemicals, pharmaceuticals, food and beverage, grease, biotechnology, liquid detergent, metallurgy, paper making, shipbuilding etc.

The wafer ball valve is ideally suited to applications where space is at a premium. The wafer ball valve is normally one-piece design and floating ball type, and are available in both cast and forged body, full and reduced bore configurations and, although intended for manual operation, actuation can be accommodated on certain sizes.

Features of Wafer type ball valves:
Short Face-to-face Dimension
1-piece Body

Cast or Forged Body

Full port or Reduce port
Anti-blowout Stem

Gear Operation or Actuator Available

Optional V-port, Curved Port, and Rectangular port

Optional locking device

Optional ISO 5211 direct mounting pad

Applicable Standards of Wafer type ball valves:

a) Design & Manufacture: ASME B16.34, JIS B2071, DIN 3357
b) Fire-safe: API 607, API 6FA
c) Face to Face: Kolink Standard
d) End Connection: ASME B16.5, EN 1092, JIS B2220
e) Test and Inspection: API 6D, EN 12266, API 598, JIS B2003

Kolink Valve, specializing in manufacture and supply of quality industrial valves, is building up its reputation for quality and economical products in the valve industry.
