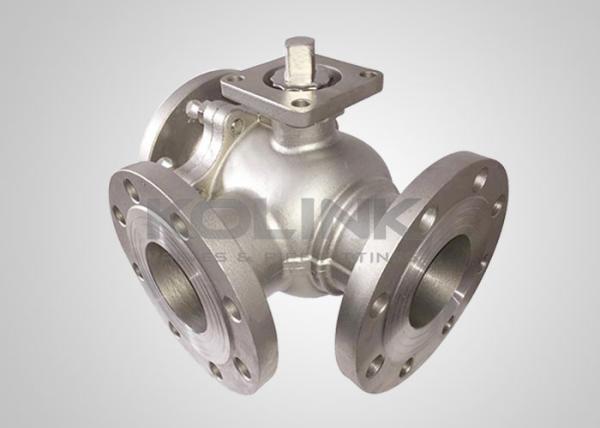

Cast Steel 3-way Ball Valve Stainless Steel L-port T-port Flanged
3-way ball valves are used for switching, converging and diverging flow through various directions as needed. The 3-way valves are normally L port or T port, depending upon the diversion requirements. The combination of different ball orientations and pipeline connections, helps the valves work various diversion functions. These valves are widely used in metallurgy, mining, petroleum, chemical, power plants, light industries and automation control systems. Due to the low pressure ratings and small sizes, 3-way ball valves are normally manually operated.
Kolink 3-way ball valves are provided with reliable sealing and smooth flow channels, ensuring accuracy of opening and closing as well as small flow resistance. As per the design of flow channels, multi-port ball valves can be classified into L port 3-way ball valves, T port 3-way ball valves, Y port 3-way ball valves and 4-way ball valves.
L Port 3-way Ball Valve
L bore 3-way ball valve is used for switching media flow direction.
It could connect 2 bores that are vertical to each other. Different
ball orientations are preset for different functions. Users are
suggested to offer detailed descriptions of the service
requirements in order to make sure correct ball configurations. An
ordinary L port 3-way ball valve may not suit a specific service
condition.
T Port 3-way Ball Valve
The T bore ball valve could connects 3 bores to each other at the
same time, or 2 of the 3 bores to each other to realize various
functions. Different ball orientations are preset for different
functions. Users are suggested to offer detailed descriptions of
the service requirements in order to make sure correct ball
configurations. An ordinary T port 3-way ball valve may not suit a
specific service condition.

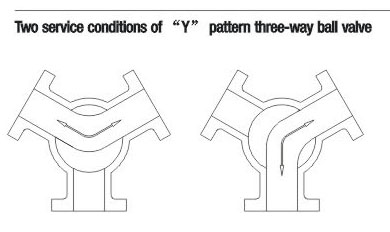

Y port 3-way Ball Valve
This special type of 3-way ball valves are used to switch flow
directions of Y Shaped pipelines. The bores of the ball valve are
in Y Type. The valve can be switched from service condition 1 to
service condition 2.

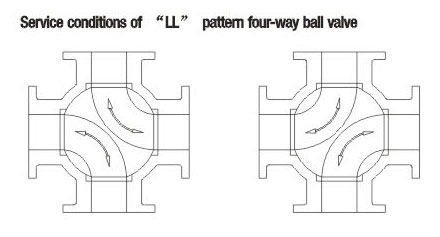

LL Port 4-way Ball Valve
4-way ball valves are developed from 3-way ball valve design. By
providing 4 seats and 4 bores, and LL port balls, the 4-way ball
valves are used to switch the flow directions of two channels
simultaneously. It can normally switch the position from connection
type 1 to connection type 2.
Features of 3-Way Ball Valves:
Compact, space-saving design
Multi-port 3 way
L or T port, and Y port options
Floating Ball Type
Fire Safe to API 607
Antistatic Design
Anti-blowout Stem
Lever, Gear Operation or Actuator Available
Optional ISO 5211 Direct Mount Actuator Pad
Applicable Standards of 3-Way Ball Valves:
a) Design & Manufacture: API 6D, BS 5351, API 608, ISO 17292, MSS
SP-72
b) Fire-safe: API 607, API 6FA
c) Face to Face: API B16.10, API 6D, EN 558, DIN 3202
d) End Connection: ASME B16.5, EN 1092, JIS B2220, ASME B16.25
e) Test and Inspection: API 6D, EN 12266, API 598
|
|
