    1-piece Stainless Steel Ball Valve BSP Screw NPT Reduced bore 1000 WOG

    Ask Lasest Price
    Brand Name : KOLINK
    Certification : PED 2014/68/EU,API 6D and ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 Pieces/Month
    Delivery Time : 2-8 Weeks
    • Product Details
    • Company Profile

    1-piece Stainless Steel Ball Valve BSP Screw NPT Reduced bore 1000 WOG

    1-piece Stainless Steel Ball Valve BSP Screw NPT Reduced bore 1000 WOG

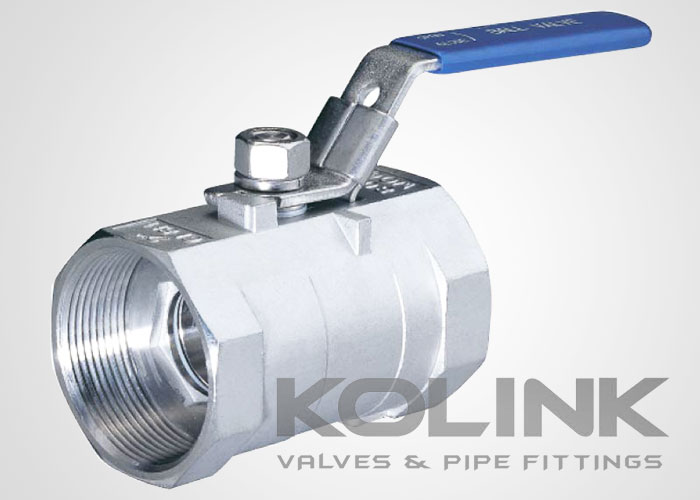

    1-piece Stainless Steel Ball Valve is the most cost-effective valve to control flow. The valve body, ball and stem are all stainless steel, and the robust one-piece type body with All PTFE packing, washer and gaskets, provides bubble-tight shutoff at 1000 psi.


    The result of the valve body being one piece is that a smaller ball has to be used, leading to a reduced port, which is also called a reduced bore or a standard bore. Stainless steel 1-piece ball valves are used in general industrial and chemical applications and are primarily used manually.



    Features of 1-piece Stainless Steel Ball Valves:
    1000 PSI Pressure Rating

    WOG (Suitable for Water, Oil & Gas media)

    Reduced / Standard Port

    NPT Threaded End for Pipe Connection

    Floating Ball Type
    Antistatic Design
    Blow-out Proof Stem
    Optional lockable handle


    Applicable Standards of 1-piece Stainless Steel Ball Valves:
    a) Design & Manufacture: ASME B16.34, BS 5351, API 607
    b) Face to Face: Kolink’s Standard
    c) End Connection: NPT / BSP Threaded
    d) Pressure Test: API 598, EN 12266
