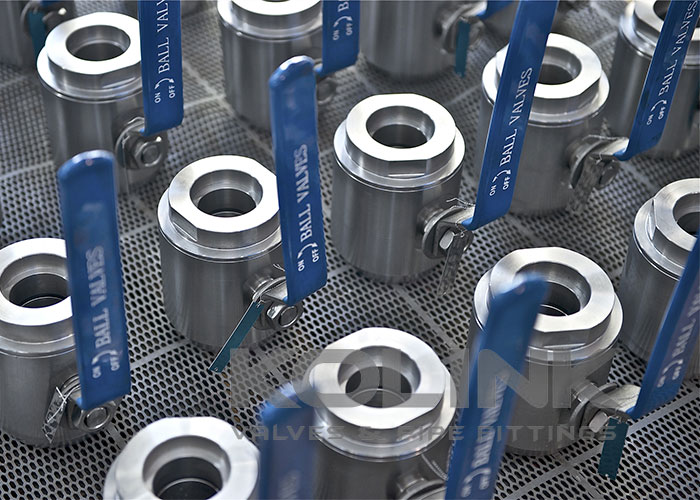

Forged Steel ball valve socket-weld SW 2-pc body Class 800

Forged Steel 2-piece ball valve is a high performance ball valve. The forging body of the ball valve ensures sufficient rigidity and strength under Class 900 - 1500 working pressure rating, without inherent flaw of cast materials. Standard wall thickness of valve body, and high strength bolts are sufficient to stand the pipe pressure. The internal parts of valve are designed and selected to ensure reliability under all kinds of work conditions.

With forged materials for improved mechanical properties, pressure retention, and quality, forged steel floating ball valves are ideal for medium or high pressure services and wide temperature range, and could replace small size trunnion-mounted ball valves.

Forged Steel Ball Valves are in an extensive range of designs, materials, sizes, pressure classes and end connections. Cryogenic and high temperature metal seated configurations are also available.

Features of Forged Steel Floating Ball Valves:,
2-piece Split Body

Full port or Reduce port
Fire Safe to API 607
Antistatic Design
Anti-blowout Stem

Gear Operation or Actuator Available

Optional locking device

Optional ISO 5211 direct mounting pad

Applicable Standards of Forged Steel floating ball valves:
a) Design & Manufacture: API 6D, BS 5351, API 608, ISO 17292, MSS SP-72

b) Fire-safe: API 607, API 6FA
c) Face to Face: API B16.10, API 6D, EN 558, DIN 3202
d) End Connection: ASME B16.5, EN 1092, JIS B2220, ASME B16.25
e) Test and Inspection: API 6D, EN 12266, API 598

Kolink Valve, specializing in manufacture and supply of quality industrial valves, is building up its reputation for quality and economical products in the valve industry.
