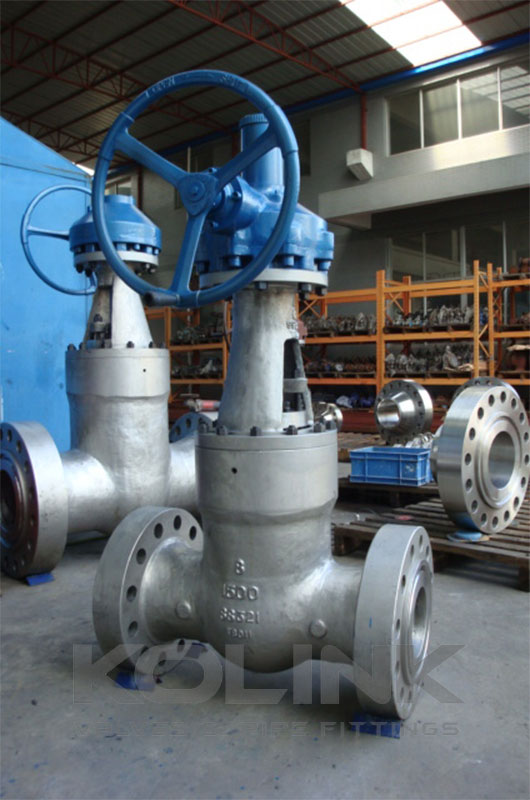

Pressure Seal Gate Valve Butt-weld End High-Pressure Class 600-2500

For gate valve with pressure Class 600 / PN100 or higher, Pressure seal bonnet is suggested for better closure, while bolted bonnet is still available for customer's option.

The pressure seal design incorporates a metal-to-metal seal that becomes tighter as the pressure increases. The initial preload deforms the taper on the soft iron gasket to mate with the taper on the bonnet. The thin knife-edge on the gasket is wedged tightly between the body and the bonnet. The shallow angle ensures that the gasket is sealed tightly with only a small upward force on the bonnet. Once the initial seal is created, the body/bonnet joint will remain leak free regardless of thermal or pressure conditions in the valve. After the joint has been assembled, there is no further need to adjust bonnet cap screws.

Features of BW End Pressure Seal Gate Valves:

Pressure seal bonnet
Outside screw and yoke
Metal-to-metal seat, satellite overlay on wedge disc, seat, and backseat
Standard ISO top mounting for easy assembly of any type of actuator or bevel gear.
Butt-weld end or flange end

Applicable standards of BW End Pressure Seal Gate Valves:
a) Design & Manufacture: API 600, API 6D, ASME B16.34
b) Face to Face: API 6D, ASME B16.10, EN 558
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
d) Test: API 600, API 6D, EN 12266

Kolink Valve, specializing in manufacture and supply of quality industrial valves, is building up its reputation for quality and economical products in the valve industry.
